WIZ105SR

New product

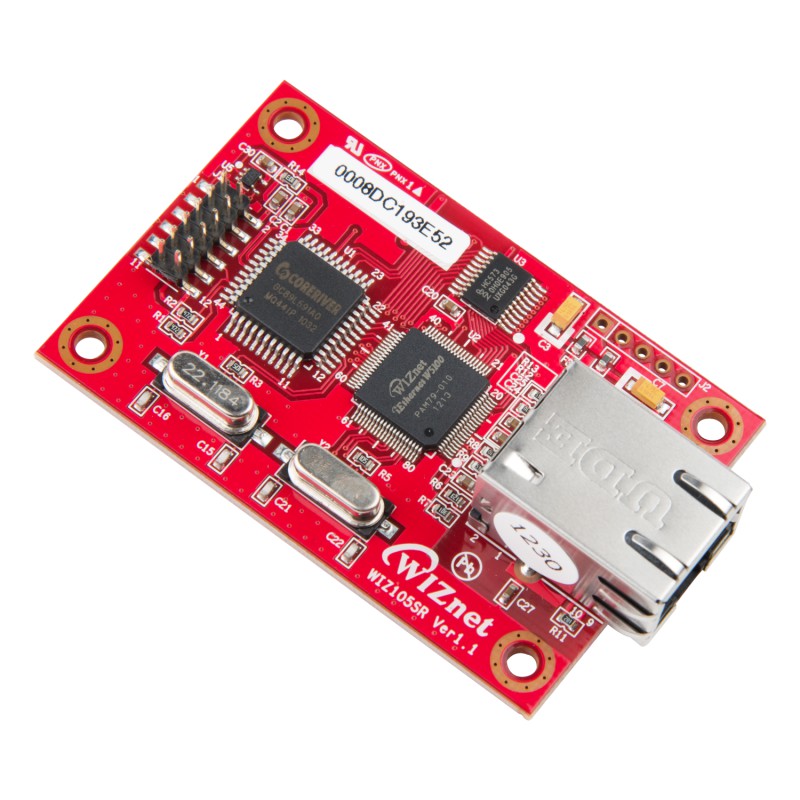

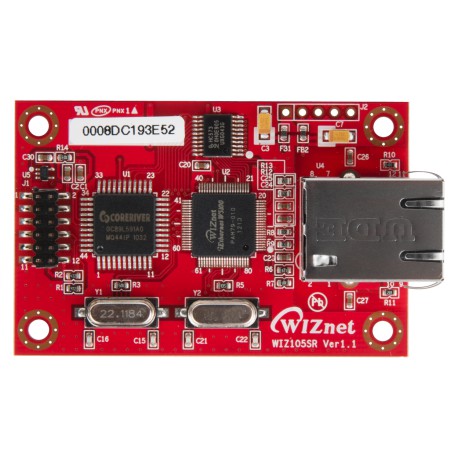

WIZ105SR is the serial to Ethernet module using W5100 & 8051 MCU. WIZ105SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment.

More details

In stock

HKD197.00

Add to wishlist

Volume discounts

QuantityDiscountYou Save
40 HKD179.00 Up to HKD7,160.00

More info

Features

  • Serial to Ethernet Module based on W5100 & 8051
  • Pin-header type, RJ-45 mounted module
  • Serial signals : TXD, RXD, RTS, CTS, GND
  • Support the configuration method of AT command & Configuration tool program
  • 10/100Mbps Ethernet & Max.230kbps serial speed
  • Support WIZ VSP (Virtual Serial Port) program

Hardware Specification

  • Pin Header Connector Type : 2mm Pitch (6×2)
  • Dimension (mm) : 40(L) x 62 (W) x 17 (H)
  • Input Voltage : 3.3V
  • Max. Power Consumption : 200mA
  • Operation Temperature : 0~80℃
  • RoHS, SVHC Compliant
  • Configuration Tool for Windows
  • WizVSP: Virtual Serial Port (COM port) for User’s Programs

Hardware Interface

Download

Documents

User Manual WIZ105SR User Manual v1.2.1

Programmer Guide WIZ100SR/ WIZ105SR/ WIZ110SR Programmer Guide

Firmware

Firmware Firmware v5.13

Utilities

Config Tool for Windows v3.02

Device Terminal Program for Windows

Hardware Design Guide

Reference Schematic Reference Schematic for WIZ105SR V1.0

Pin Header Description WIZ105SR PinHeader Description
