WIZ-IP55

WIZ-IP55

New product

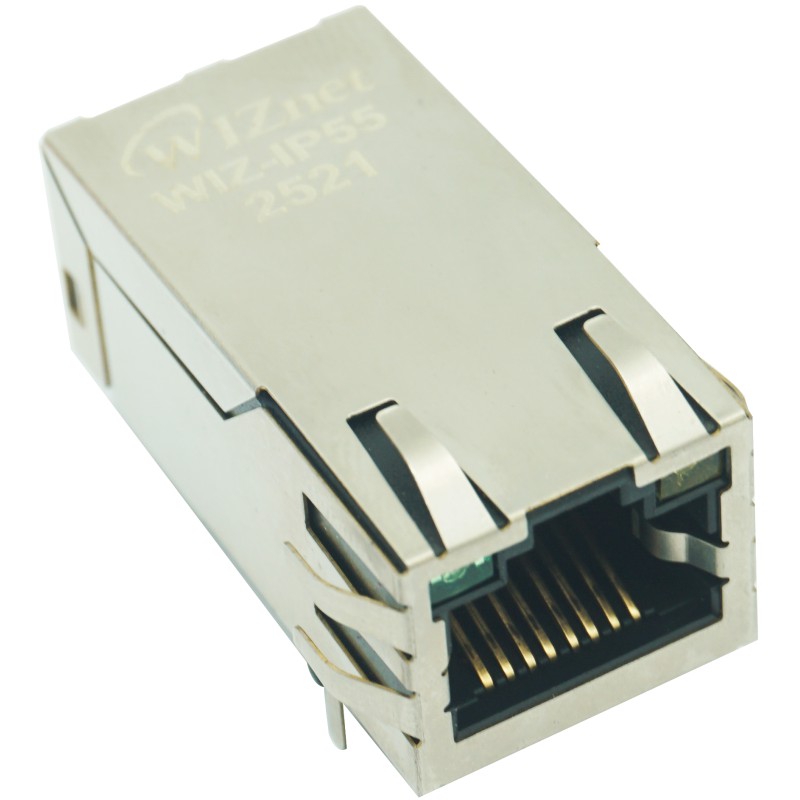

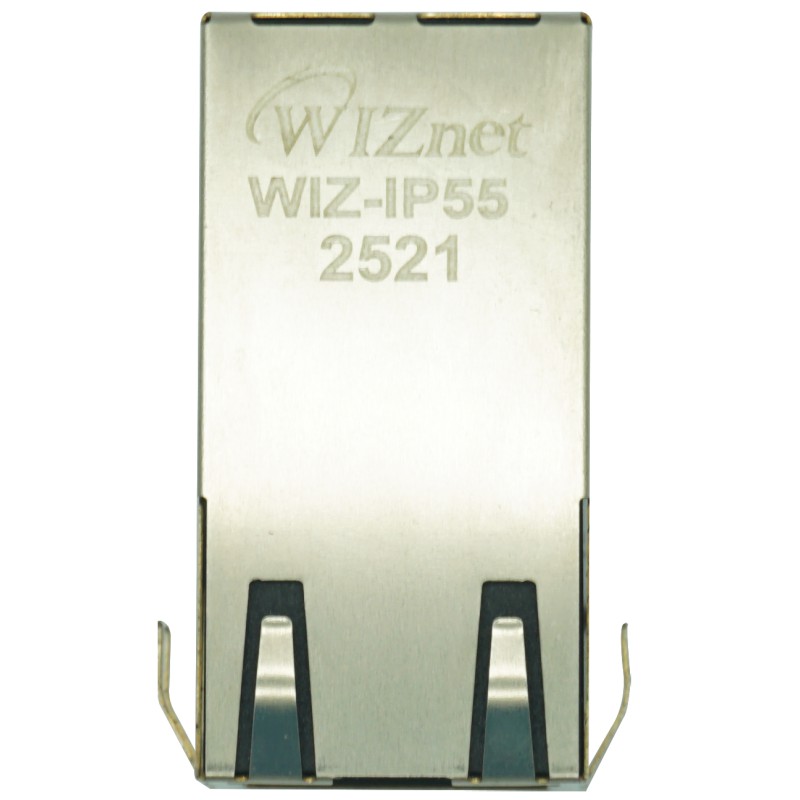

WIZ-IP55 is a network offloading module that integrates the W5500 chip (with built-in PHY physical layer and TCP/IP hardware protocol stack) and an RJ45 connector with integrated network transformer. As a plug-and-play component, it enables seamless interface connection between the W5500 and the transformer without the need for additional circuit design.

More details

In stock

HKD118.00

Add to wishlist

More info

Feature

  • Supports full hardware TCP/IP protocol: TCP, UDP, WOL, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
  • Supports 8 independent SOCKET concurrent communication
  • Supports half-duplex/full-duplex operation mode
  • Supports Ethernet power-off mode
  • Supports UDP-based network wake-up (WOL) function
  • High-speed SPI interface (MODE 0/3)
  • Built-in total 32Kbytes of send/receive cache
  • Integrated 10BaseT/100BaseTX Ethernet PHY
  • Supports Ethernet auto negotiation (full/half-duplex,10Base-T/100Base-TX)
  • Operating voltage:3.3V (I/O compatible with 5V signal voltage)
  • 19-pin pin header interface
  • Package size (length×width×height):32.5×16.5×17.3(mm)
  • Compatible with WIZnet's IO module carrier board development board

more

Reviews

No customer reviews for the moment.

Write a review

WIZ-IP55

WIZ-IP55

WIZ-IP55 is a network offloading module that integrates the W5500 chip (with built-in PHY physical layer and TCP/IP hardware protocol stack) and an RJ45 connector with integrated network transformer. As a plug-and-play component, it enables seamless interface connection between the W5500 and the transformer without the need for additional circuit design.
