WIZ-IP51S

WIZ-IP51S

New product

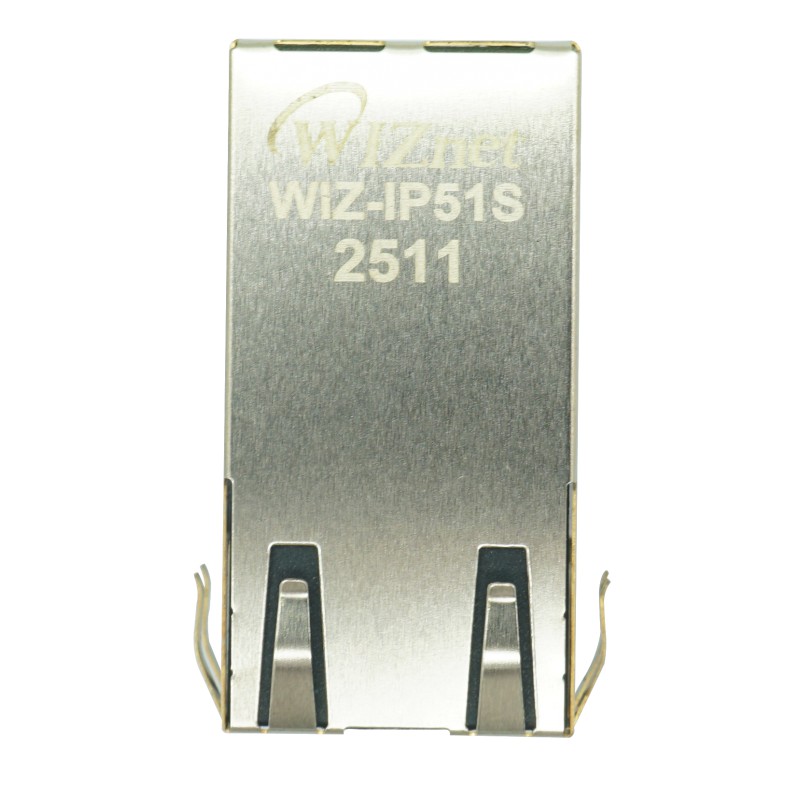

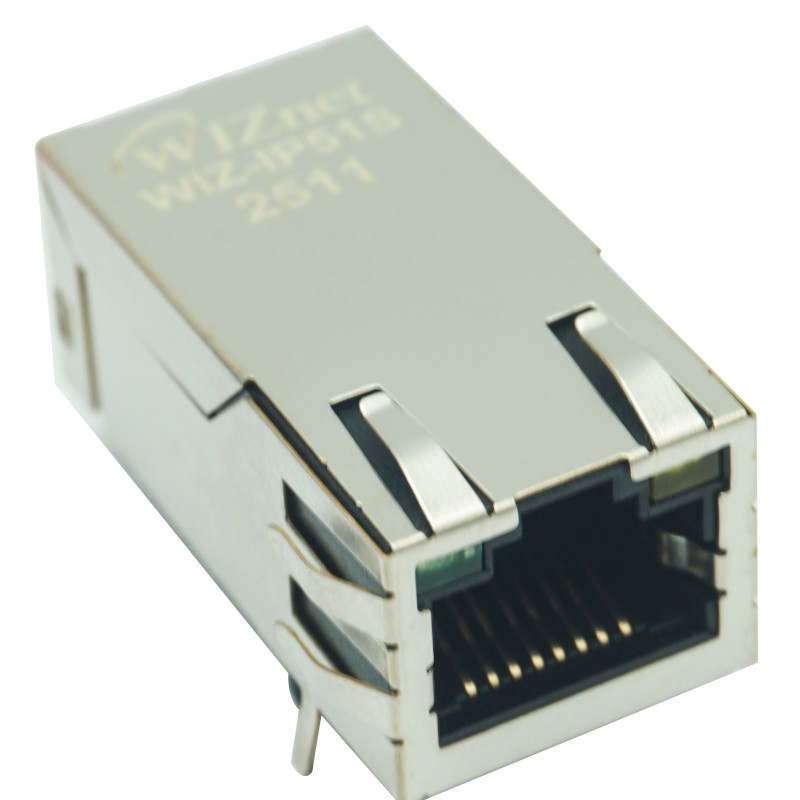

The WIZ-IP51S is a network offloading module that integrates the W5100S chip (with built-in PHY physical layer and TCP/IP hardware protocol stack) and an RJ45 connector with integrated network transformer. As a plug-and-play component, it enables seamless interface connection between the W5100S and the transformer without the need for additional circuit design.

More details

Add to wishlist

More info

Feature

    • Supports full hardware TCP/IP protocol: TCP, UDP, WOL, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
    • Supports SOCKET-less instructions: ARP-request, PING-request
    • Supports 4 independent SOCKET concurrent communication
    • Supports half-duplex/full-duplex operation mode
    • Supports Ethernet power-off mode and master clock selection energy-saving mode
    • Supports UDP-based network wake-up (WOL) function
    • High-speed SPI interface (MODE 0/3)
    • Built-in total 16Kbytes of send/receive cache
    • Integrated 10BaseT/100BaseTX Ethernet PHY
    • Supports Ethernet auto-negotiation (full/half-duplex, 10Base-T/100Base-TX)
    • Supports Auto-MDIX function (only supported in Ethernet auto-negotiation mode)
    • Operating voltage: 3.3V (I/O compatible with 5V signal voltage)
    • 19-pin pin header interface
    • Package size (length×width×height):32.5×16.5×17.3(mm)
    • Compatible with WIZnet's IO module carrier board development board
