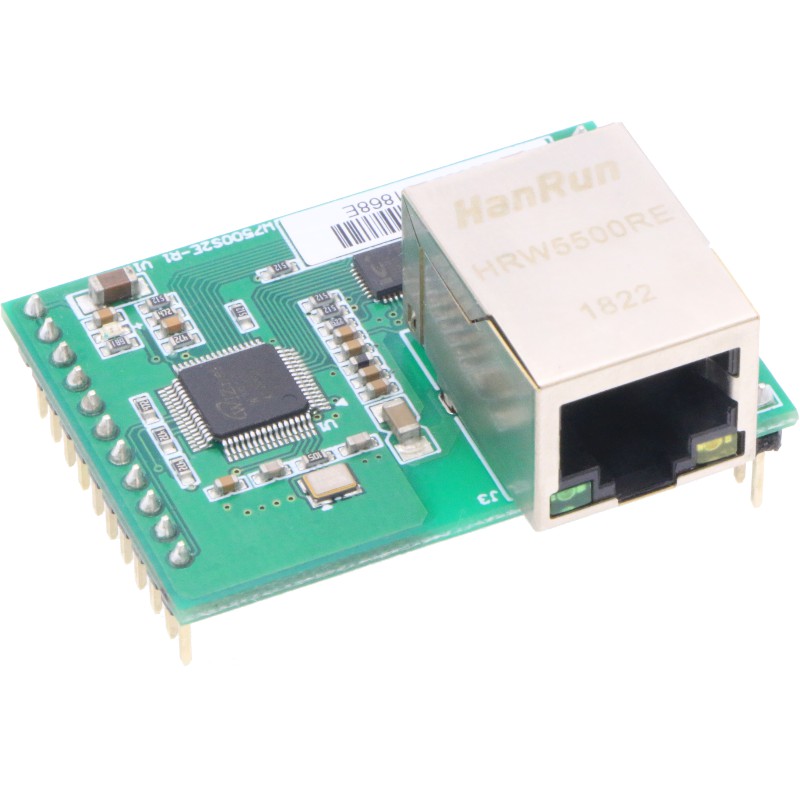

W7500S2E-R1

W7500S2E-R1

New product

W7500S2E-R1 is an industrial-grade serial-Port Ethernet module, supporting TCP Server, TCP client and UDP three kinds of operation mode, serial port baud rate of up to 1.152Mbps, and support computer configuration software, also it can be easily configured through Web pages by AT commands.

More details

In stock

HKD69.50

Add to wishlist

Volume discounts

QuantityDiscountYou Save
96 HKD4.70 Up to HKD451.20
1008 HKD10.00 Up to HKD10,080.00

More info

Module is based on iMCU W7500 which integrates CortexM0 with full hardware TCP/IP protocol stack Ethernet engine, and network communication is fast, stable and robust. The user just need to refer to the reference schematics and the user manual, can complete the hardware circuit design quickly, reduces the development difficulty and saves the development time.

Features

  • 10/100 Mbps Ethernet interface with auto-negotiation and RJ45 connector
  • Support TCP server, TCP client and UDP operating modes
  • Flexible serial interface data packaging condition settings
  • Smart Ethernet cable detection and keep alive features
  • As DHCP client to automatically acquire IP address
  • As DNS client to lookup domain name
  • Support NetBIOS allows user to identify module’s name
  • Support user password authorization for security
  • Support serial AT command configuration method
  • Built-in web server for browser and remote configuring
  • Provide user-friendly configuration tool program (WIZS2E ConfigTool)
  • Support firmware upgrade by ConfigTool

Specification

  • Serial interface: 3.3V TTL x1: TXD, RXD, GND
  • Default Serial communication parameters
    • Baud Rate: From 300bps to 460,800bps
    • Data Bit: 7, 8
    • Stop Bit: 1, 2
    • Parity: None, Even, Odd
    • Flow Control: None, CTS/RTS
  • Configuration methods
    • WIZS2E ConfigTool
    • Web based (via web browser)
    • Serial AT command
  • Power supply: Input Power: DC 3.3V
  • Size: 44.45 x 31.75 x 23 (mm)
  • Operating temperature: -40 ~ +85 ℃ (Industrial Grade)
  • Storage environment: -40 ~ +85 ℃, 5 ~ 95% RH

W7500S2E-R1 provides three common parameter configurations for users to choose from:

  • WIZS2E ConfigTool for Windows software, users can install the software on the Windows operating system computer configuration;
  • Web browser configuration, facilitate users to configure locally or remotely through a Web browser;

AT command configuration, users can integrate W5500S2E-R1 into their own embedded products on the motherboard, through the AT command for parameter configuration, or directly through the serial tool to use the AT command configuration.
