WIZ750SR

New product

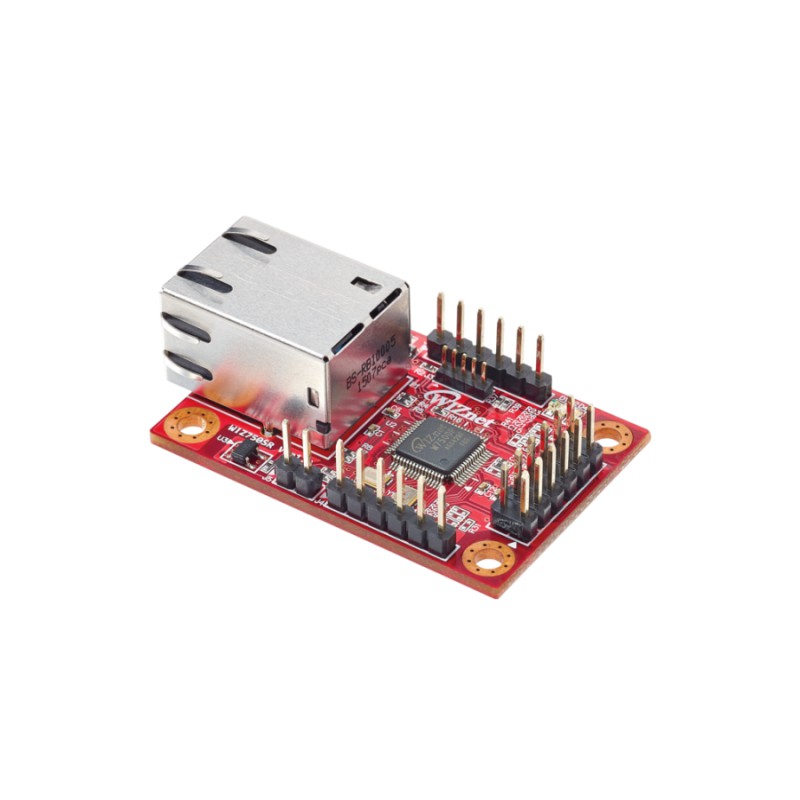

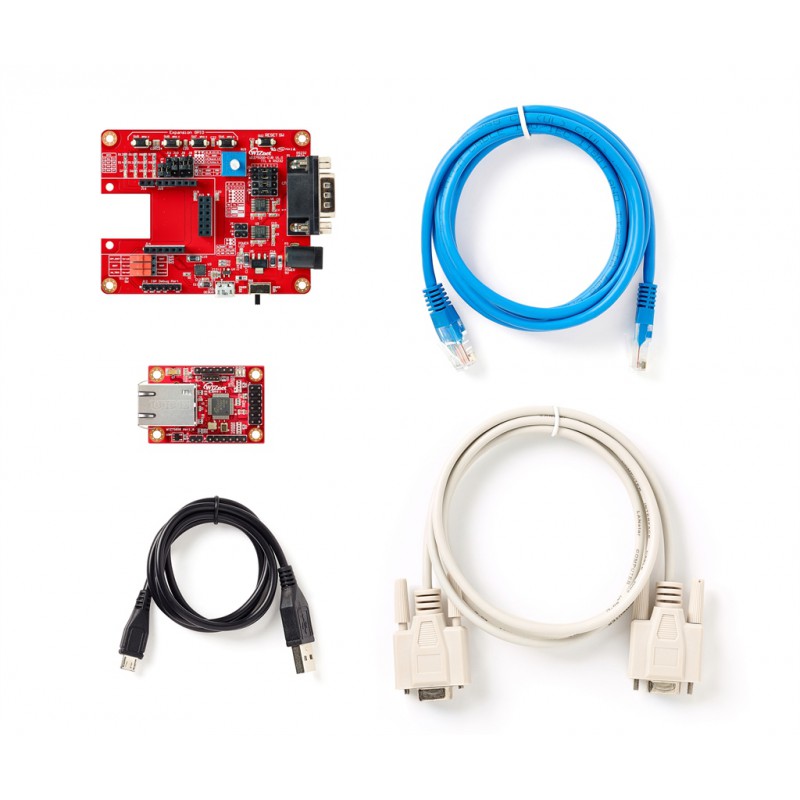

WIZ750SR is designed in the form factor with pin header, including pins and RJ-45 connector. An ease of use serial to Ethernet modules build-in W7500P MCU which is based on Cortex-M0.

More details

HKD170.80

Add to wishlist

Volume discounts

QuantityDiscountYou Save
36 HKD155.20 Up to HKD5,587.20
108 HKD147.40 Up to HKD15,919.20

More info

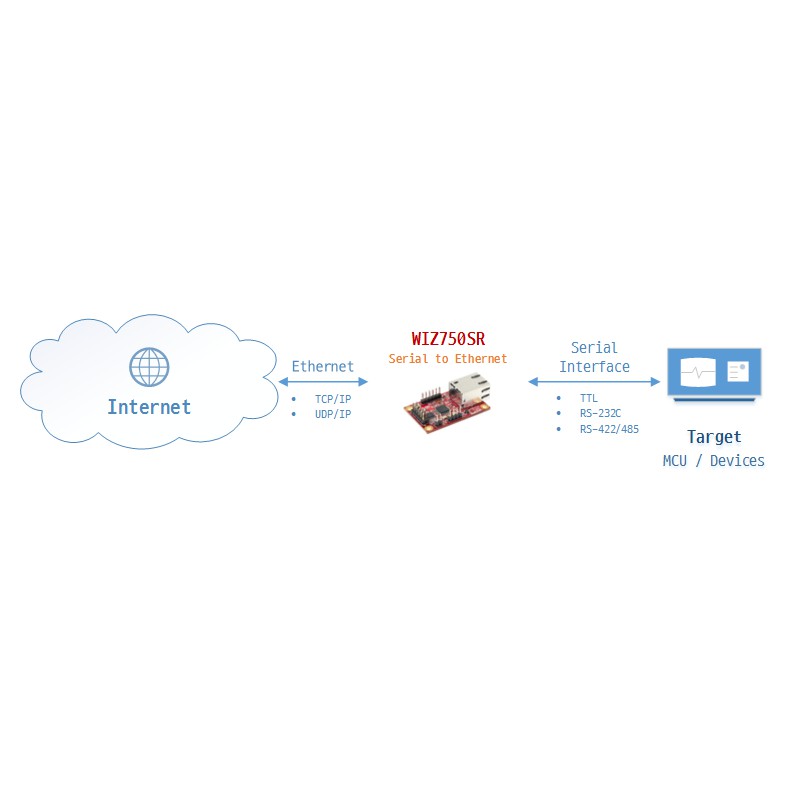

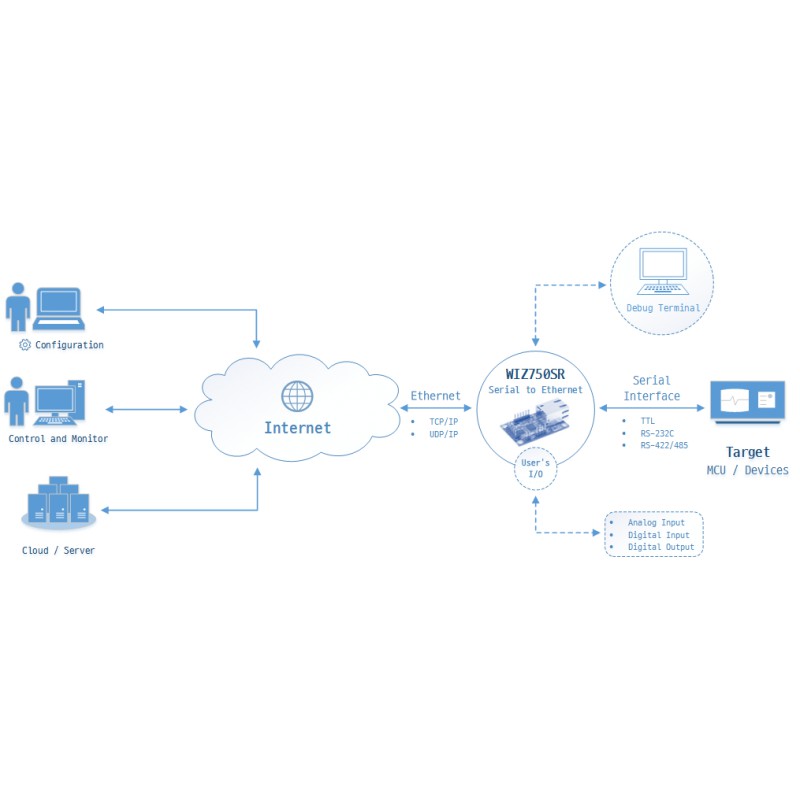

WIZ750SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to a serial equipment.

WIZ750SR is designed to be compatible with the series WIZ107 / 108SR, offers four user I/O pins that can be programmable.

WIZ750SR is the best fit solution to control user's serial device via Ethernet network.

Features

  • Serial to Ethernet Module based on W7500P MCU
  • Software and Hardware compatible with WIZ107/108SR S2E Module
  • The Modules produced in three forms on one-type PCB board
    • WIZ750SR-TTL: TTL Version

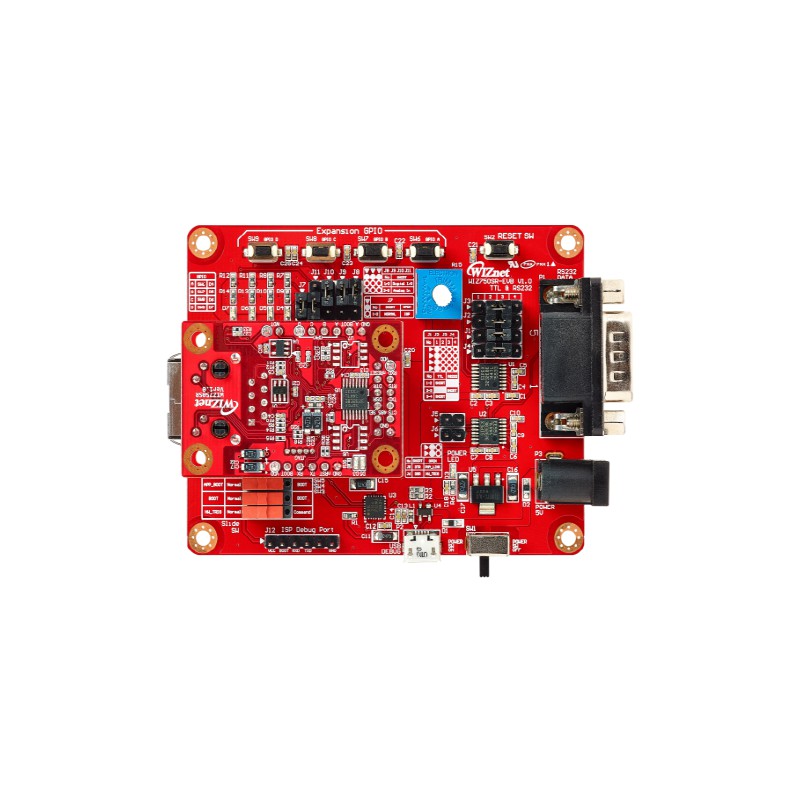

    • WIZ750SR-RS232: RS-232 Version

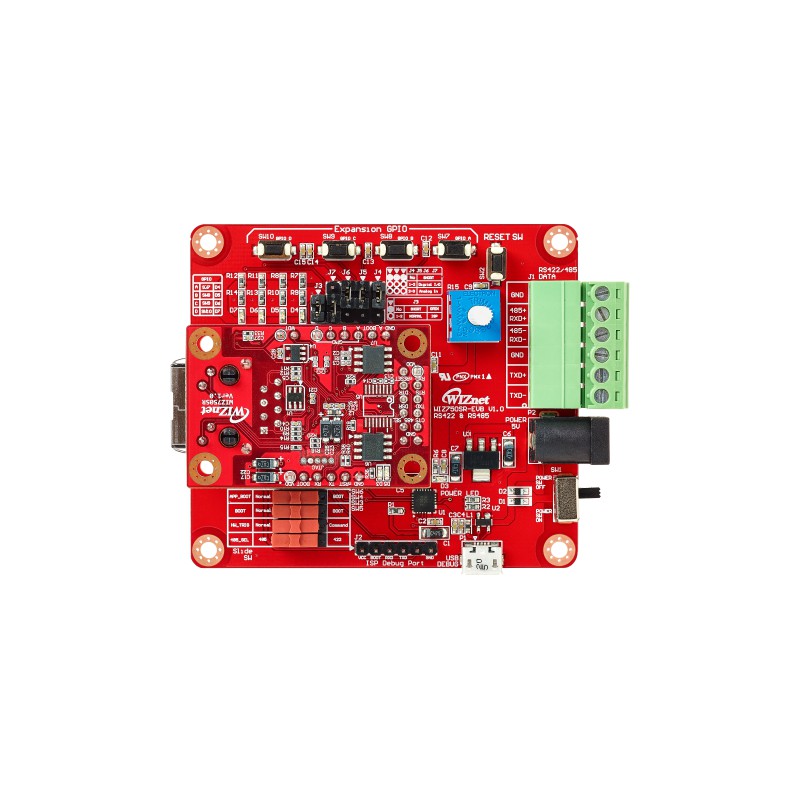

    • WIZ750SR-RS485: RS-485/422 Version
  • 10/100Mbps Ethernet & Up to 230kbps serial speed
  • Pin-header(2×6) type & RJ-45 connector mounted module
  • 4-Pins Configurable User's I/O
  • Status pins: PHY link status / TCP connection status
  • Serial signals(RS-232 or RS-422/485 transceiver optionally built-in)
    • RS-232/TTL version: TXD, RXD, RTS, CTS
    • RS-422/485 version: 485+/RXD+, TXD+, 485-/RXD-, TXD-, 485_SEL
    • Optional DTR/DSR signals supported (Status pins or DTR/DSR pins selectable)
  • Separate Data UART and Debug UART port
  • Support password function for the security
  • Support the configuration method of serial AT commands & Configuration tool program
  • Support WIZ VSP (Virtual Serial Port) program
  • Built in 10/100Mbps Ethernet ESD Protection IC
  • Built in Supervisor IC for improvements of Reset function stability
  • PCB Board design 45mm X 30mm (Length x Width)
  • Compact sized design 48mm X 30mm X 18mm (Length x Width x Height)
