W5500S2E-S1

New product

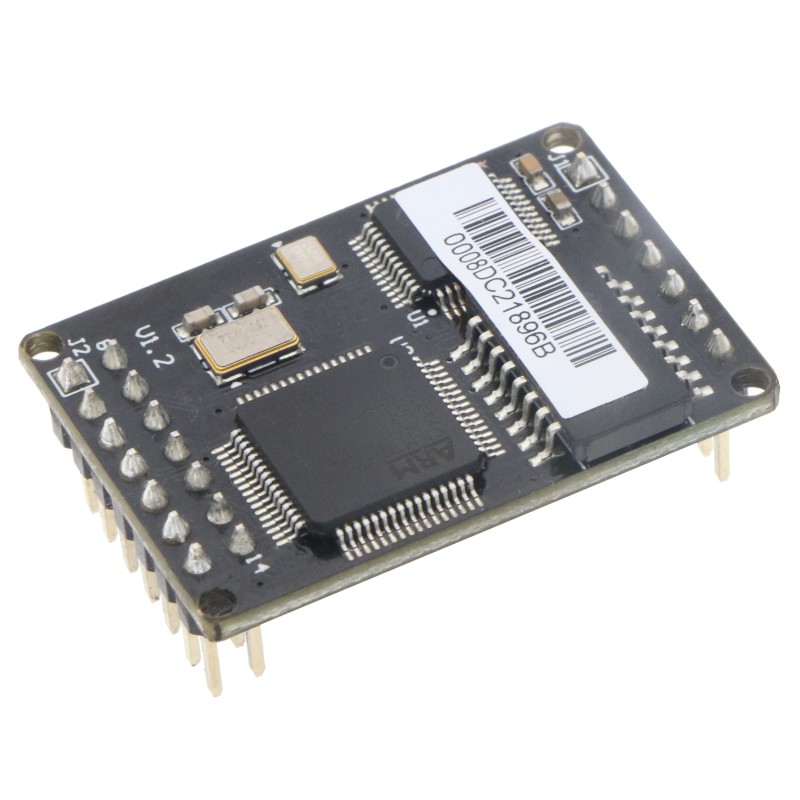

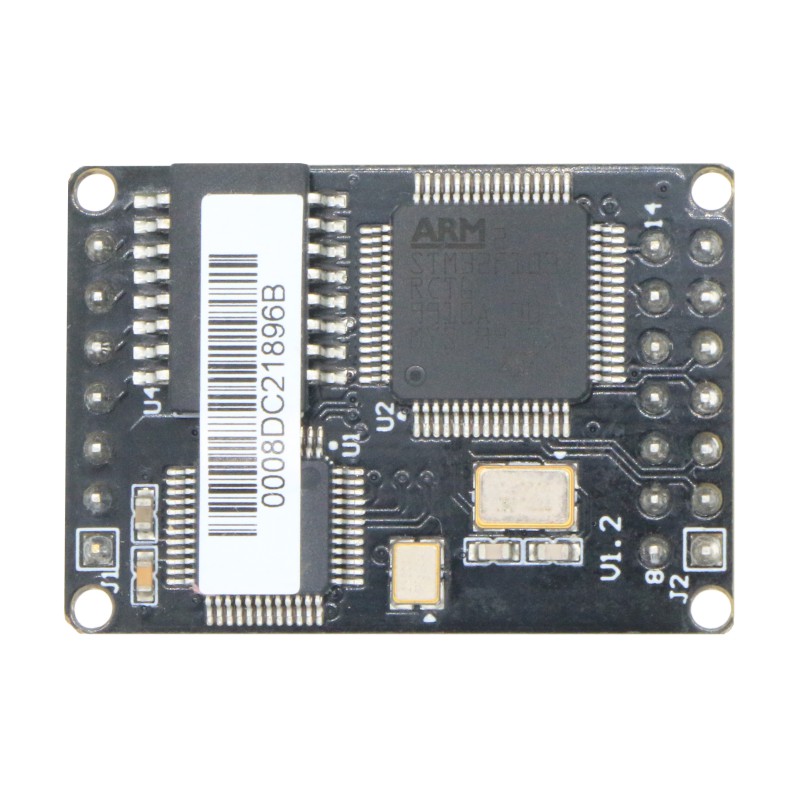

W5500S2E-S1 is an industrial grade Serial-to-Ethernet module which support wide range of baud rate , from 1.2Kbps to 1.152Mbps. W5500S2E-S1 uses the hardwired TCP/IP protocol Ethernet chip WIZnet W5500. This is a faster, stable and better security solution. User could easily creates the hardware design that reduces the development time and difficulty for this module.
More product details

More details

In stock

HKD117.00

Add to wishlist

Volume discounts

QuantityDiscountYou Save
96 HKD9.00 Up to HKD864.00
1008 HKD29.00 Up to HKD29,232.00

More info

Features

  • Support TCP server, TCP client and UDP operation modes
  • Flexible serial interface data packaging settings that fulfill difference user needs
  • Smart Ethernet cable detection and keep alive function, provides real-time and secure and Ethernet connection
  • Support DHCP function to automatically acquire IP address
  • Support DNS function to satisfy the communication through domain name access
  • Support NetBIOS function allows user to identify module’s name
  • Support user password configurable for security
  • Support serial AT command configuration method
  • Built-in web server for remote configuring
  • Provide user-friendly configuration tool software
  • Support local and remote firmware upgrades configurations

Specification

  • LAN interface
    • 10/100 Mbps Ethernet interface (via Pin header), RJ-45 transformer on board (magnetics)
  • Serial interface
    • 3.3V TTL x1:, TXD, RXD, CTS, RTS, GND
  • Serial communication parameters
    • Baud Rate:From 1.2Kbps to 1.152Mbps
    • Data Bit: 7, 8
    • Stop Bit: 0.5, 1, 1.5, 2
    • Parity: None, Even, Odd
    • Flow Control: None, CTS/RTS
  • Software
    • Tool:W5500S2E-S1 ConfigTool
    • Configuration methods:ConfigTool, Web Browser, Serial AT Command, VSP software (WizVSP)
  • Power Supply
    • Input Power: 3.3V DC
  • Dimensions
    • Size: 34 x 24 x 12.4 (mm)
  • Operation Temperature
    • Industrial Grade: -40 ~ +85 ℃
    • Storage environment: -40 ~ +85 ℃, 5 ~ 95% RH
