WIZ107SR-EVB

New product

WIZ107SR-EVB is a evaluation board for WIZ107SR.

It complies with industrial temperature standard and supports the serial interface of RS-232 or TTL.

More details

In stock

HKD311.00

Add to wishlist

More info

Hardware Specification
[WIZ107SR Module]
  • TCP/IP : W7100A
  • PHY : Embedded in W7100A
  • RJ-45 : BS-RB10005 (Transformer Integrated)
  • MCU : 8051 (W7100A) : SRAM : 64K Byte, FLASH-64Kbyte, 2Kbyte Boot ROM
  • Serial : 3.3V LVTTL or RS-232

[Base Board]

  • Module Interface : 6×2 2.54mm Pin Header (Male)
  • Serial Connector : D-SUB, 9PIN, Right Angle, Male
  • RS-232 Transceiver : SP3232EBEY (optional)
  • Power : DC Jack mounted (External : 4.5Ø, Internal :1.3Ø)

[Accessories]

  • Power Adaptor (5V, 2A), UTP LAN Cable (2M), Serial Cable, WIZ107SR-CBL (connection cable between module & base board)

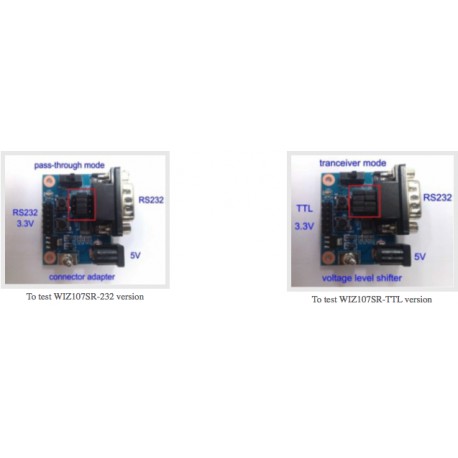

Base Board Type
