WIZ850io

New product

WIZ850io is an compact-sized network module that includes W5500(TCP/IP & Ethernet MAC & PHY) & MAG-JACK (RJ45 with X’FMR) with other glue logics. As it is hardware compatible with WIZ820io, you can easily replace the WIZ820io with WIZ850io just by updating the firmwware.

More details

In stock

HKD128.60

Add to wishlist

Volume discounts

QuantityDiscountYou Save
80 HKD116.90 Up to HKD9,352.00

Data sheet

Embedded CoreTCP/IP, MAC & PHY
Host InterfaceFast SPI
TX/RX Buffer32KB
Number of Hardware Socket8
Network PerformanceMax 15Mbps
Operation Temp (℃)-40 ~ 85
Dimension (mm)23mm x 25mm x 18mm

More info

Key Features

  • Plugin Network Module.
  • Hardware compatible with WIZ820io.
  • Usable without H/W design for W5500, Transformer & RJ45.
  • Fast evaluation for W5500 & MCU in the target board.
  • Support high speed SPI interface.
  • Support power down mode and Wake-on-LAN function
  • Very small form factor : 23mm x 25mm x 18mm
  • 1 x 6, 2.54mm Pin Header x 2

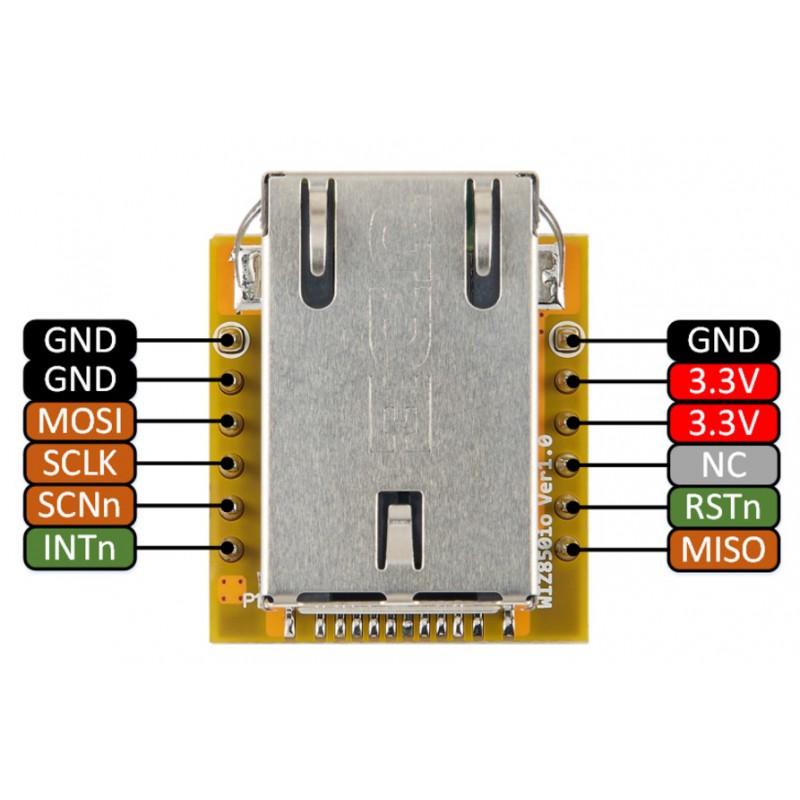

Pin Assignment

Download

WIZ850IO WIKI WIZ850io WiKi

  • Latest Information about WIZ850io
  • Hardware Pins
  • SPI Operation
  • Timing Diagram
  • Block Diagram & Schematic
  • Dimension

HARDWARE GUIDE WIZ850io Hardware Guide

  • WIZ850io Schematic
  • WIZ850io Dimension

Utility

 DOWNLOAD AX1 Loopback Test Program, Window Install version
