WIZwiki-W7500

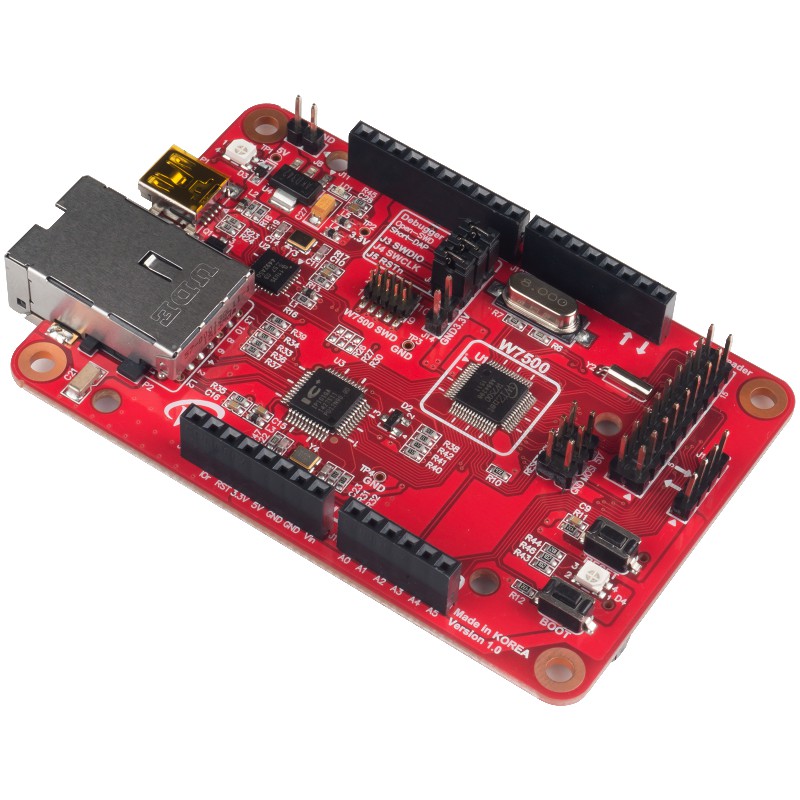

WIZwiki-W7500 is a WIZwiki platform board based on the W7500, the ARM Cortex-M0 that integrates 128KB Flash and hardwired TCP/IP core. If you use WIZwiki-W7500 board, you can easily evaluate the W7500 and test its performance and all functions.

MCU : W7500 (ARM Cortex-M0 + Hardwired TCP/IP)

External Ethernet PHY

• IP+ IC10GA
• Single Port 10/100 MII/RMII/TP/Fiber Fast Ethernet Transceiver
• Auto MDI/MDIX function
• Supports MDC and MDIO to communicate with the MAC

CMSIS-DAP

• LPC11U35FHI33/501, ARM Cortex-M0 Core, NXP
• Drag-n-drop programming
• USB Serial Port
• Easy to use C/C++ SDK

Connector

• USB Mini B Type
• Slim Size RJ45(with transformer)
• Arduino compatible pin headers
• SWD Header (1.27mm and 2.54mm)
• GPIO Header
• ISP Header

ETC

• 5V USB Power or 5V header supply
• 2 system SW – RESET SW, BOOT SW
• RGB LED
• Micro SD card slot

WIZwiki-W7500 Block Diagram

WIZwiki-W7500 Callout

WIZwiki-W7500 Detail Pinout

WIZwiki-W7500 Simple Pinout

Dimension

• WIZwiki-W7500 V1.0 Dimension

WIZWIKI.NET Wiki document
