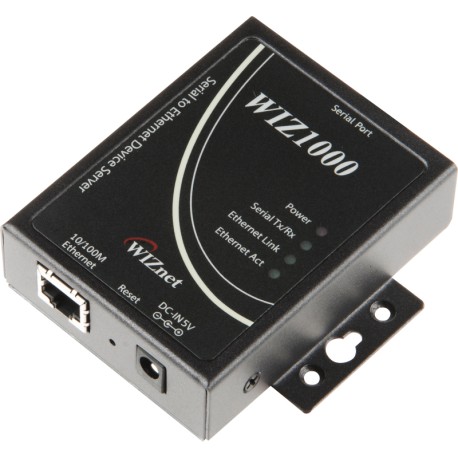

WIZ1000

New product

WIZ1000 is an external device server that performs “Serial to Ethernet” function.

More details

HKD601.00

Add to wishlist

Volume discounts

QuantityPriceYou Save
20 HKD546.00 Up to HKD1,100.00

More info

WIZ1000 is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment.

Just by connecting LAN & Serial cable to the device, you can easily add the ‘Serial to Ethernet’ function.

Features

  • External device server to perform “Serial/Ethernet Convert Function”
  • Support easy implementation of Ethernet to the existing serial device
  • Guarantee high system stability and reliability by using W5100 hardware chip
  • Support PPPoE Connection
  • Supports firmware customization
  • Telnet Com Port Option (RFC2217) compliant
  • Supports serial configuration by using AT command
  • Software utilities for easy configuration
  • User friendly configuration tool program & its source code
  • WIZ VSP (Virtual COM port Program)
  • CE, FCC, KCC certified
Hardware Specification
  • Dmension (mm) : 90.7 x 92 x 22.7 (L x W x H)
  • Input Voltage : DC 5V
  • Max. Power Consumption : 200mA
  • Operation Temperature : 0~80℃
  • RoHS, SVHC Compliant
Utilities
  • Configuration Tool for Windows
WizVSP: Virtual Serial Port (COM port) for User’s Programs

Download

Documents

USER MANUAL WIZ1000 User Manual V1.1.1

Firmware

FIRMWARE Firmware v1.6

FIRMWARE (OLD VER.) WIZ110SR Old Firmware

Utilities

CONFIG TOOL WIZ1000 Config Tool for Windows v1.0.0.3

DEVICE TERMINAL Device Terminal Program for Windows
