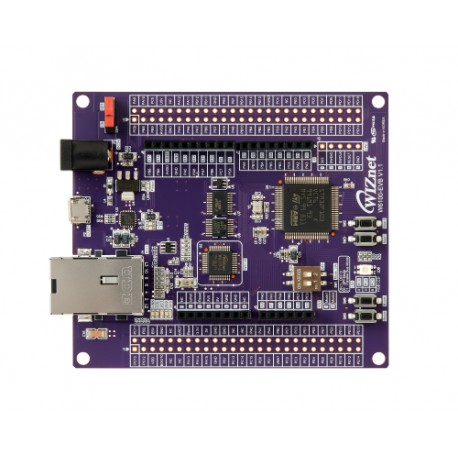

W6100-EVB

New product

W6100-EVB is an evaluation board for W6100 chip based on the 32-bit ARM® Cortex™-M3 microcontroller. It is the easy way to develop internet connection for efficient and small embedded systems using W6100, WIZnet's hardwired TCP/IP embedded Ethernet controller. It has been designed to be hardware pin-compatible with 'Arduino shields' for the 'Arduino UNO Rev3' and other footprint-compatible boards.

More details

This product is no longer in stock

HKD233.00

Add to wishlist

More info

It is based on the STM STM32F103VCT6 MCU with a 32-bit ARM® Cortex™-M3 core running at Maximum 72MHz. It includes 256 or 512kB Flash memory, 64kB SRAM various interfaces, including BUS(Flexible static memory controller), SPI/SSP, I2C, UART, ADC, PWM and other I/O interfaces. Additionally, Two programmable push button switches, one RGB LED and a 10/100 Base-Tx RJ-45 connector with an integrated transformer are on board to implement embedded networking applications.

The W6100-EVB provides benefits in developing easier and powerful network applications on small form-factor and non-OS based embedded devices using the W6100 chip.

Features

WIZnet W6100 Hardwired TCP/IP chip

  • Hardwired TCP/IP embedded Ethernet controller
  • Parallel Host Interface (External BUS Interface)
  • SPI (Serial Peripheral Interface) Microcontroller Interface
  • 32kB internal Tx/Rx socket buffer memory (8 socket)
  • Support SOCKET-less Command: ARP-Request, PING-Request
  • Support Auto Negotiation (Full/Half Duplex, 10/100 Speed)
  • Support Auto-MDIX when Auto-Negotiation Mode.
  • Hardwired TCP/IP stack supports TCP, UDP, IPv6, IPv4, ICMPv6, ICMPv4, IGMP, MLDv1, ARP, PPPoE protocols

STMicroelectronics STM32F103VCT6 MCU

  • 32-bit ARM® Cortex™-M3 microcontroller running at up to 50MHz
  • 256 Kbytes of Flash memory
  • 48 Kbytes of SRAM
  • 5 × USARTs
  • 4 × 16-bit timers, 2 × basic timers
  • 3 × SPIs, 2 × I2Ss, 2 × I2Cs
  • USB, CAN, 2 × PWM timers
  • 3 × ADCs, 2 × DACs, 1 × SDIO
  • FSMC (100- and 144-pin packages)
  •  STMicroelectronics STM32F103VCT6 Product page

Connectors

  • 1-Channel 10/100Mbps Ethernet Connector (RJ45 with transformer)
  • Virtual COM Port(UART via Micro USB B type) –  CP2104 Drivers Download Page
  • Expansion 80 GPIOs (Include analog Peripheral using 12bit ADC)
  • Pin-compatible with Arduino Shields designed for the UNO Rev3
  • Digital pins D0 to D15, Analog inputs A0 to A5, the power header and Etc.
  • ARM standard debug connector: 5-pin Cortex debug connector for SWD (Serial Wire Debug)

Others

  • 2 x User's Push button switches
  • 1 x RGB LED
  • Industrial temperature specified (-40 to +85 degrees Celsius)
  • [Reset] and [boot0] ISP access push button switch

Form-factor

  • Dimension : 90 X 80 X 15(H) (Unit : mm)
  • 5V DC power supply
  • GPIO Input Voltage : 0 ~ 5V
  • GPIO Output Voltage : 0 ~ 3.3V
  • 4-layer PCB (FR-4 material, 1.6T, 1oz)
  • Arduino Compatible with SWD Header Pinout
