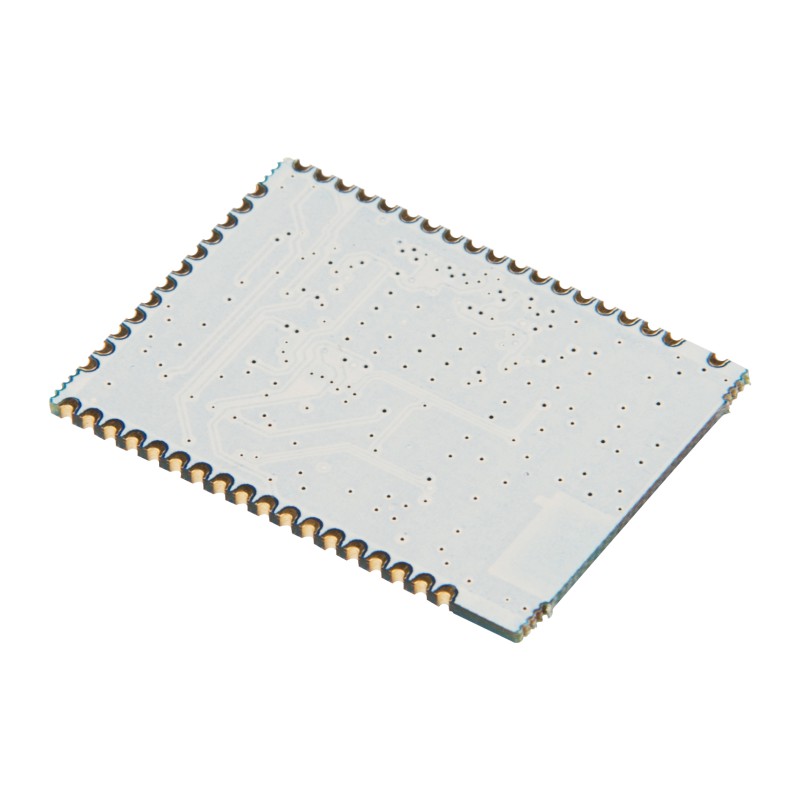

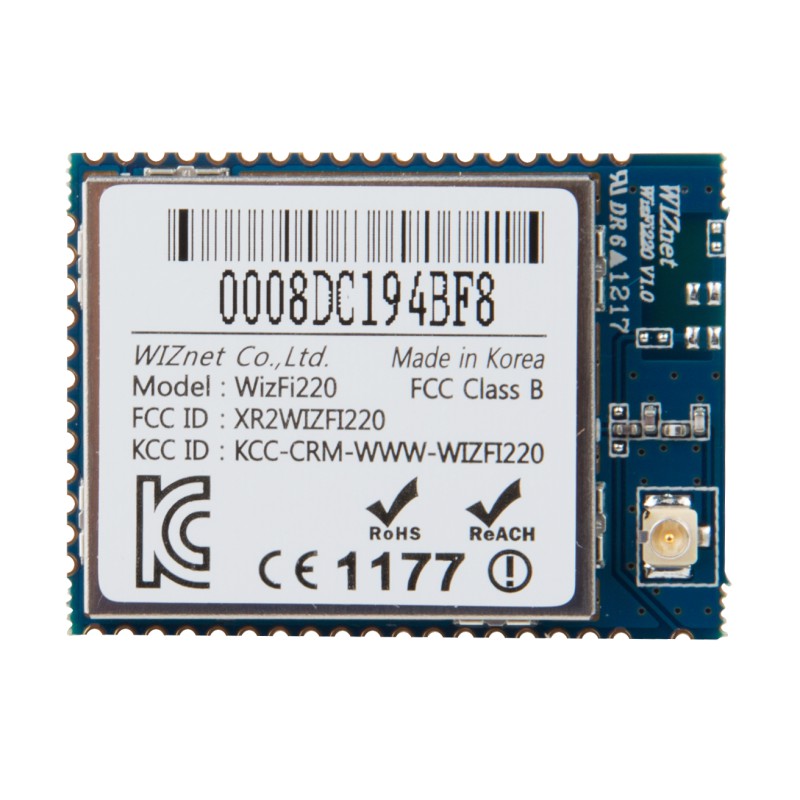

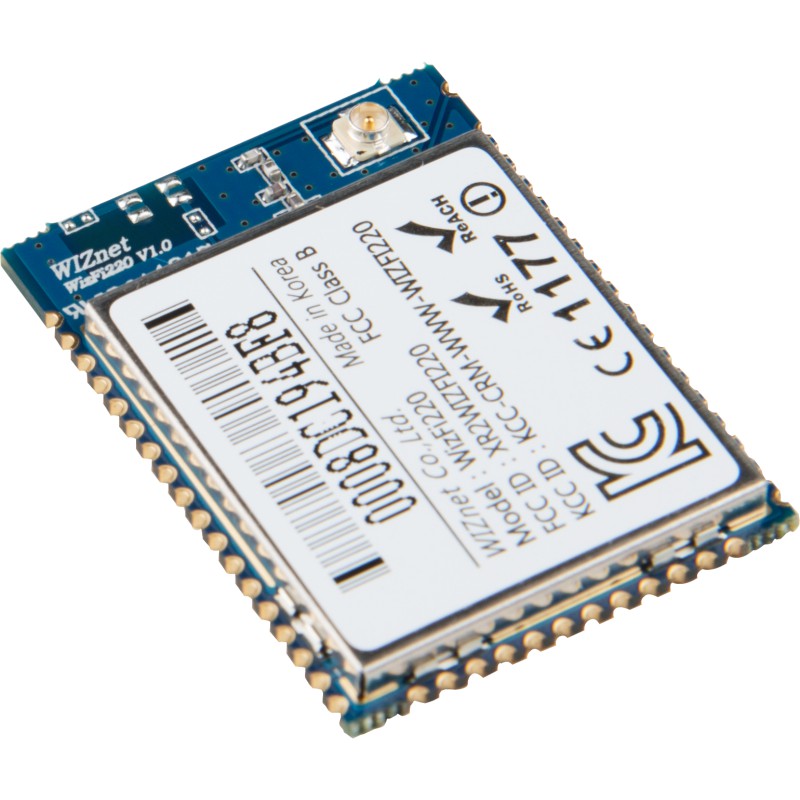

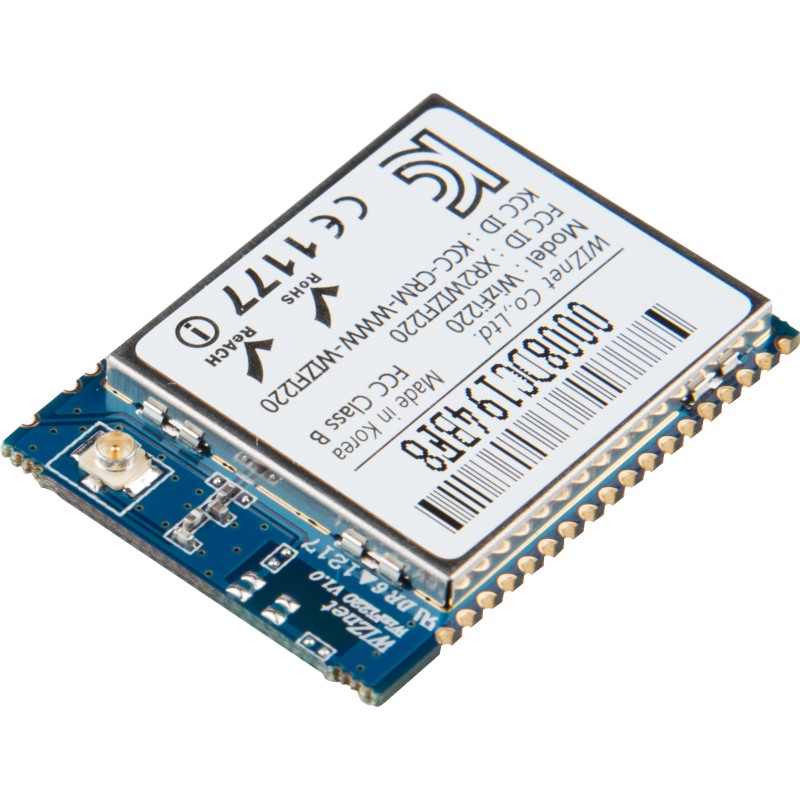

WizFi220
New product
WizFi220 is a Wi-Fi module that provides the robust and stable Wi-Fi connectivity and performs Wi-Fi connectivity and TCP/IP processing.
Volume discounts
| Quantity | Price | You Save |
|---|---|---|
| 80 | HKD186.80 | Up to HKD1,496.00 |
Data sheet
| Operation Temp (℃) | -40 ~ 85 |
| Package Type | SMD Type |
| Operation Mode | Station(Client), Soft AP, Ad hoc |
| Wireless Standard | 802.11b, 2.4G |
| Interface | UART, SPI, GPIO, ADC |
| Power Consumption | Standby: 35μA Receive: 125mA Transmit: 250mA |
| Configuration | AT Command |
| Output Power | 17 dBm |
| Booting Time | under 100ms |
| Dimension (mm) | 32x23.3x2.9 |
| Certification | KCC, CE, FCC |
More info
WizFi220 is a Wi-Fi module that provides the robust and stable Wi-Fi connectivity. WizFi220 performs all functions for Wi-Fi connectivity and TCP/IP processing. All you have to do is just sending commands to the module via serial interface.WizFi220 is all compatible with WizFi210 in hardware & software, but it has the external power amplifier for the longer communication.
Features
- Hardware Compatible with WizFi210
- External power amplifier mounted for the longer communication range
- Single band 2.4GHz IEEE802.11b Wi-Fi module
- Host Interface : UART & SPI
- Quick booting time : under 20msec
- Low power through dynamic power management (34µA at the standby mode)
- Security protocols : WEP, WPA/WPA2-PSK, Enterprise (EAP-FAST, EAP-TLS, EAP-TTLS, PEAP)
- Operation temperature : -40 ~ 85℃CE, FCC, KCC, TELEC certified
- Dimension : 32 x 23.5 x 2.9(mm)
- Provides chip antenna mounted version
