WIZ125SR is an embedded module based on WIZnet W5100 &  ARM Cortex-M3. WIZ125SR supports two serial devices.

Not recommended for new design

End of support

More details

HKD249.00

Add to wishlist

Volume discounts

QuantityPriceYou Save
40 HKD226.00 Up to HKD920.00

More info

Not recommended for new design

End of support

WIZ125SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment. It supports two serial ports so that it can communicate with two serial equipments at the same time.

Features

  • Serial to Ethernet Module based on W5100 & Cortex-M3
  • Serial signals : TXD, RXD, RTS, CTS, GND signals (2 UART/RS-232C)
  • 2 DB-9 & RJ-45 mounted
  • Support the configuration method of AT command & Configuration tool program
  • 10/100Mbps Ethernet & Max.115.2kbps serial speed
  • Support WIZ VSP (Virtual Serial Port) program

Hardware Specification

  • 2 DB-9 for serial  & 1 RJ-45 for Ethernet interface
  • Dimension (mm) : 88.5(L) x 65.5 (W) x 18 (H)
  • Input Voltage : 3.3V
  • Max. Power Consumption : 220mA
  • Operation Temperature : 0 ~ 70℃
  • RoHS, SVHC Compliant

Utilities

  • Configuration Tool for Windows
  • WizVSP: Virtual Serial Port (COM port) for User’s Programs

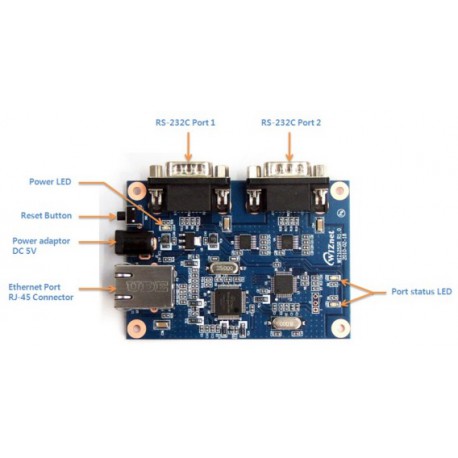

Hardware Interface

Download

Documents
USER MANUAL WIZ125SR User’s Manual v1.1.0
Datasheet WIZ125SR Datasheet v1.00
Firmware
FIRMWARE Firmware v1.4.0
Utilities
 CONFIG-TOOL WIZ120SR/ WIZ125SR Config Tool for Windows v1.3
  • Last Update: 2013.04.18
  • WIZ120SR/ WIZ125SR Config Tool Program Installation Package
  • WIZ120SR/ WIZ125SR Config Tool Source Code
 DEVICE TERMINAL Device Terminal Program for Windows
  • Last Update: 2015.08.05
  • Simple Configuration & Testing for WIZnet Serial to Ethernet Module
