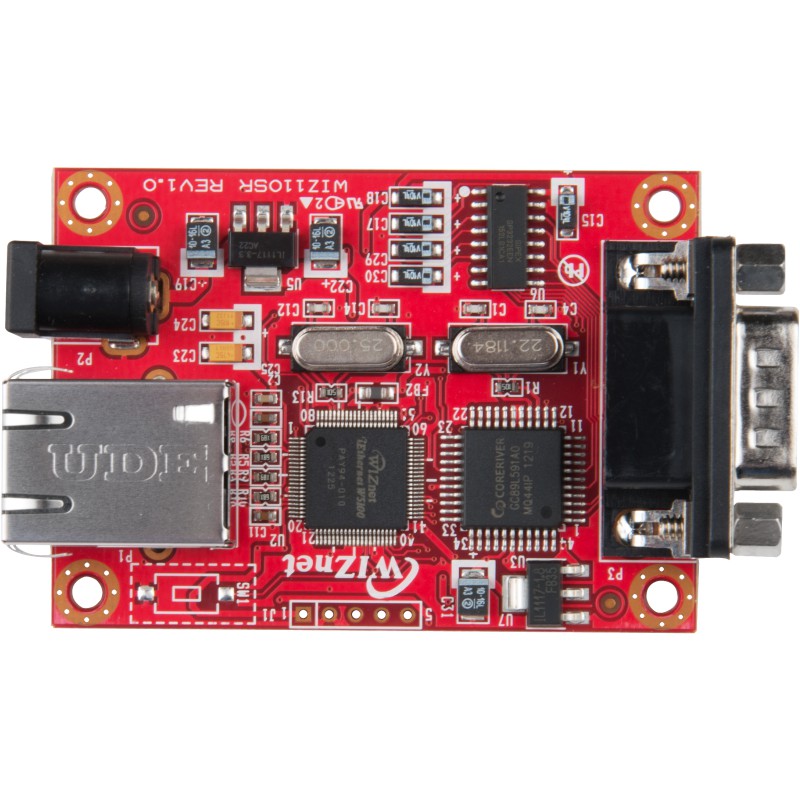

WIZ110SR

WIZ110SR

New product

WIZ110SR is the serial to Ethernet module using W5100 & 8051 MCU.  WIZ110SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment.

Not recommended for new design

End of support

Recommended Product: WIZ750SR-110

More details

In stock

HKD205.92

Add to wishlist

Volume discounts

QuantityPriceYou Save
40 HKD187.20 Up to HKD748.80
120 HKD179.40 Up to HKD3,182.40
360 HKD205.92 Up to HKD0.00

More info

Not recommended for new design

End of support

Recommended Product: WIZ750SR-110

Just by connecting LAN, Serial cable and power to the modules, you can easily add the ‘Serial to Ethernet’ function without additional hardware design.

Features

  • Serial to Ethernet Module based on W5100 & 8051
  • DB-9 & RJ-45 mounted module
  • Serial signals : TXD, RXD, RTS, CTS, GND, RS-232 transceiver built-in
  • Support the configuration method of AT command & Configuration tool program
  • 10/100Mbps Ethernet & Max.230kbps serial speed
  • Support WIZ VSP (Virtual Serial Port) program

Hardware Specification

  • Dmension (mm) : 75(L) x 50 (W) x 17 (H)
  • Input Voltage : 3.3V
  • Max. Power Consumption : 180mA
  • Operation Temperature : 0~80℃
  • RoHS, SVHC Compliant

Utilities

  • Configuration Tool for Windows
  • WizVSP: Virtual Serial Port (COM port) for User’s Programs

Hardware Interface

Download

Documents

User Manual WIZ110SR User Manual v2.1.0

Programmer Guide WIZ100SR/ WIZ105SR/ WIZ110SR Programmer’s Guide

Firmware

Firmware Firmware v5.13

Firmware (Old Ver.) WIZ110SR Old Firmware

Utilities

Config Tool WIZ100SR /WIZ105SR /WIZ110SR Config Tool for Windows v3.0.2

Device Terminal Device Terminal Program for Windows

Reviews

No customer reviews for the moment.

Write a review

WIZ110SR

WIZ110SR

WIZ110SR is the serial to Ethernet module using W5100 & 8051 MCU.  WIZ110SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment.

Not recommended for new design

End of support

Recommended Product: WIZ750SR-110

Accessories

    Download

    WIZ110SR User Manual v2.1.0

    WIZ110SR User Manual v2.1.0

    Download (1.52M)
