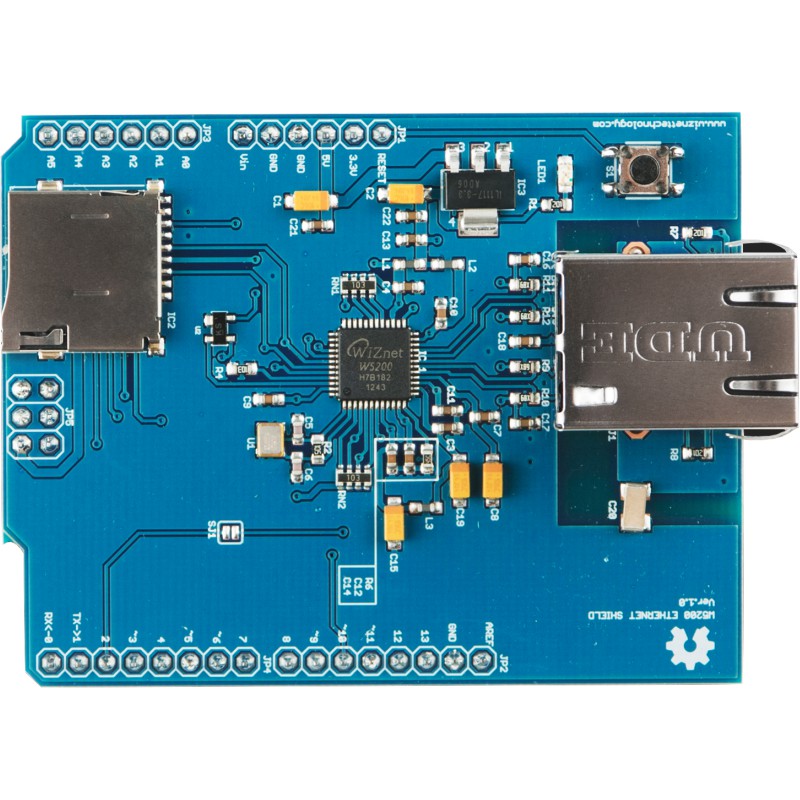

W5200 Ethernet Shield

New product

W5200 Ethernet Shield is compatible with Official Arduino Ethernet Shield and supports fast SPI and 8 sockets.

Not recommended for new design

End of support

More details

In stock

HKD211.00

Add to wishlist

More info

Not recommended for new design

End of support

We are providing W5200 Ethernet Shield CAD File that were created in the free software, Eagle CAD that are downloadable from CadSoft.

You need to change the existing W5100 files to W5200 library files.

1. Install W5200 library Overwrite w5100.cpp, w5100.h to the “/libraries/Ethernet/utility” folder in your Arduino IDE.

2. Using the W5200 library and evaluate existing Ethernet example. In the Arduino IDE,  go to Files->Examples->Ethernet and open any example, compile and upload the file to Arduino board.

3. Note: libraries/Ethernet/Ethernet.h needs the following at line 10 instead of “#define MAX_SOCK_NUM  4, since it doesn’t #include “w5100.h” ”

#ifdef W5200

#define MAX_SOCK_NUM 8

#else

#define MAX_SOCK_NUM 4

#endif
